We have now entered the dawn of a new era in Gauge 1 modelling.
Gauge 1 has for many years been the domain of the 'Model Engineer', who
purchased track only for the running of their loco, but in recent years
there has been an increase in the 'Railway Modeller' hobbyist who is interested
in running their beautiful loco on equally beautiful track, or for use
on exhibition, club and private layouts where appearance is all important.
Code 180 fine rail has started the revolution as it has all the benefits,
but not the cost. Stainless steel for great appearance. Better traction.
Less expansion/contraction. Less wear. Run fine & standard scale wheels.
Conductive for 2 rail live pickup. So now the first thing to consider
is the rail, let's make a start.... |
|
Please
use the Shopping Cart to get your Discount
Click the drop
down menu to select the item and the click 'Add To My Order'. Adjust the number
required & click 'Apply'. Then 'Continue Shopping'. The weight of each item
is added to the order, you then choose the applicable postage. You can pay by
Debit or Credit card via PayPal. You can also choose a 10% discount if you are
paying by Cash, or 3% for Bank Transfer or PayPal Gift. When finished ordering
items, click 'Checkout'. |
RAIL
|
I
now have 2 rail sections available to the Gauge 1 modeller:- |
The
new Fine Scale Bullhead CODE 180
Standard (Coarse) Scale Flat Bottom CODE 200 |
FINE CODE 180 BULLHEAD RAIL |
This
is the new rail section which for all intense and purposes has taken over from
the old code 200 section. With an overall size of 4.56mm x 2.24mm, a head height
of 1.15mm and foot height of 0.66mm, and root thickness of .98mm. It fits
the 'Standard' Scale 4 bolt injection moulded sleeper units and the new purpose
made 4 bolt 'Fine' scale injection moulded sleeper unit. Suitable for both
Standard Scale and Finescale wheel sets. A maximum flange depth of 2.4mm
(without wheel coning) can be used on either the 'Standard' double sleeper unit
or the newer single 'Fine' sleeper unit. This is a new section drawn exclusively
for me in either Brass, Stainless Steel or Nickel Silver. It is far easier
than the old rail to identify which way round the rail has to be fed through the
chairs and has a greatly improved appearance. For those modellers on a budget,
this is also the cheapest option. Going on from the traditional choice of brass
rail, I introduced the Stainless Steel rail which is now the most popular rail
to be bought. It has some great advantages over brass, being harder wearing than
brass, which is very useful where rail wear could be a problem such as portable
exhibition tracks. It has approximately 30% less expansion and contraction
than brass, so a smaller gap can be used at the fishplates and there is less risk
of buckling in the summer heat. It is conductive for those who use 2 rail
or stud contact, and it keeps cleaner. Better grip being steel on steel.
But the main reason people like the Stainless Steel is the appearance with a slight
surface rusting effect after some time outside. Paint will adhere better
to steel than brass. Can be silver soldered and soft soldered, using a special
flux. A surface rusting fluid is now available as well. This is the most
popular rail I now sell, for those modellers who are looking for the best looking
track at reasonable price, there is no choice; once you see it, it has to be "Stainless
Steel" rail. Available in 1 yard (36") (915mm), and 2 yard (72")
(1830mm). Please note that the 2 yard lengths will be more expensive for shipping. |
Since
the introduction of the Stainless Steel rail, I have now also introduced
the code 180 rail in Nickel Silver, and this is available for those modeller's
who are used to working in this material in the smaller gauges. It has a similar
appearance to Stainless Steel, so could be also be useful in turnout construction
for ease of manufacture and soldering. It is conductive for those who use 2 rail
or stud contact. Can be silver soldered and soft soldered.
(Please note that the 2 yard lengths will be more expensive
for shipping)
|
|

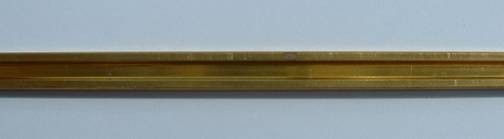

STANDARD CODE 200 BULLHEAD
RAIL |
All
stock of the old code 200 brass and nickel
silver has now gone, but there is no problem because
all track has now been adapted to fit the code 180 rail.
|

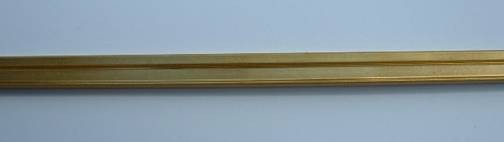

STANDARD SCALE CODE 200
FLAT BOTTOM RAIL |
I
now have stocks of the Flat Bottom rail drawn to the old 'Gauge 1 Model Railway
Association' standards for 'Flat Bottom Rail', although this is not a true flat
bottom section. It has an overall size of 5.00mm x 2.5mm top/2.85mm bottom, root
thickness is 1.15mm. This older section rail does not seem to have much
of a flat bottom, but is available for those who wish to match the nickel silver
rail used on 'Peco' track, this is then offered as a low cost alternative. It
would be useful to those wishing to use the solder to copper clad board method.
It is easy to identify which way up the rail goes. I do not have any sleeper
units to fit this rail although it will just fit the 'Standard' sleeper units
at a push. A maximum flange depth of 2.5mm (without wheel coning) can be
used. Available in brass, 1 yard (36") (915mm), 2 yard (72") (1830mm).
Please note that 2 yard lengths will be more
expensive for shipping. |
|

The picture here shows the different
rail heights, or should I say, 'What difference', as you can see from this, there
is virtually no difference. So those who have the older code 200 rail can
easily join to the new code 180 rail, and take full advantage of all the new items
available. In the centre, the brass code 200 bullhead rail. This is
joined on the left via my lost wax brass fishplate, to the new code 180 stainless
steel rail which has been rust treated. On the right is the new code 180
stainless steel rail joined via my new 20mm black A.S.A. moulded plastic fishplate.
|

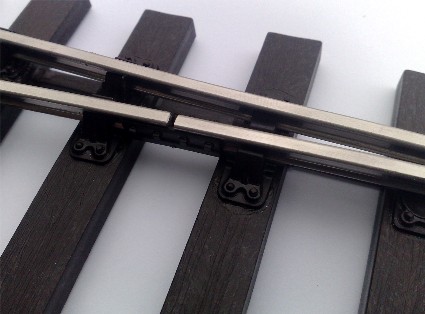

MACHINED
BLADES |
For those who
are building their own turnouts, I now have available pairs of pre-machined blades
in various rail materials. They are 10" (255mm) long and are suitable for
any turnout up to 16' 6" (5000mm) long, they will need to be cut to length.
These come with fitting instructions a pair of 15mm or 20mm Fishplates depending
on which rail used.
|
|
READY
MADE PLASTIC TRACK |
If you prefer
'Ready Made', then I have a complete range for you to choose from...
Please note - that the term 'Fine' or 'Standard' scale track, refers to the appearance
and NOT to the track gauge which remains the same throughout at 45mm or 45.5mm
for gauge widened.
First the newer FINE track:- |
FINE SCALE
READY MADE TRACK |

|
Ready made track with 36 sleeper
units in either UV stabilized dark chocolate brown polypropylene with a track
gauge of 45mm, or a gauge widened version (45.5mm) in UV stabilized A.B.S. dark
chocolate brown plastic, both with a choice of brass, stainless steel or nickel
silver rail. The perfect track for either 1:32 or 10mm scale. Overall track height
from sleeper base to rail top is 10.2mm
NEW - Lower cost
version suitable for indoor track or a display track, this new unit is moulded
in black polypropylene but without any U.V. light protector.
NEW - The ultimate
tough track - virtually unbreakable! Available in dark brown 'BAYBLEND' which
is a high quality ABS and poly carbonate mixture with added UV protection. With
brass rail or stainless steel rail (both made to order). This track is suitable
for extreme sunlight conditions. |
|
STANDARD
SCALE READY MADE TRACK |
Ready made track with 18 double
sleeper units in either dark chocolate brown polypropylene with a track gauge
of 45mm, or a gauge widened version (45.5mm) in A.B.S. dark chocolate brown plastic,
both with a choice of brass or nickel silver rail. Overall track height from sleeper
base to rail top is 10.5mm
NEW - Lower cost
version suitable for indoor track or a display track, this new unit is moulded
in black polypropylene but without any U.V. light protector.
NEW - The ultimate
tough track - virtually unbreakable! Available in dark brown 'BAYBLEND' which
is a high quality ABS and poly carbonate mixture with added UV protection. With
brass rail or stainless steel rail (both made to order). This track is suitable
for extreme sunlight conditions.
|
 |
|

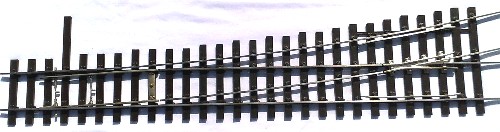

READY MADE
FINE POINTS |
 |
Ready made Points are now also available
using the 'Fine' sleeper units and a limited range is still available in the 'Standard'
injection moulded long sleepers and chairs. These come as a 2000mm (6' 7"),
3250mm (10' 8") or 5000mm (16' 5") L.H. or R.H. radius's, and
also as a "Y". With a wide choice of either Stainless Steel, Brass or
Nickel Silver. Now fitted as standard with over centre click insulated flat Tiebars, optional brass or nickel silver tiebar available to pre-order.
Use the 3250mm for general point work, 5000mm if you have the
space and for the Main Line and Crossings. The 2500mm is only recommended where
space is at a premium. The 2000mm is only recommended for Shunting Layouts.
Diamond Crossings - use 14 degree with 3250 radius and 9 degree
with the 5000mm points.
Please Note:- most brass and all nickel silver points are "made
to order", about 2 - 3 weeks. |
|

NEW - P29 - 3250/5000 Double Radius Curved Point
- Available from stock
|
Modeller's
Information - Fine Points
To plan your layout, these are the sizes for
the various points measured from centre of fishplate to centre of fishplate. The
size can be reduced by 25mm if 1 of the 2 standard sleepers is removed after the
blade rail end, and a further 25mm if no standard sleepers are used at the nose
end.
2000mm left or right hand = From the point of
the Nose to the end of the Blade = 423mm. 555mm overall. Nose angle 12 degrees.
2000mm 'Y' = From the point of the Nose to the
end of the Blade = 260mm. 378mm overall.
2500mm left or right hand = From the point of
the Nose to the end of the Blade = 475mm. 620mm overall.
3250mm left or right hand = 665mm overall.
3250mm 'Y' = From the point of the Nose to the
end of the Blade = 330mm. 482mm overall.
5000mm left or right hand = 800mm overall.
5000mm 'Y' = 597mm overall.
14 degree Crossover = 521mm overall.
|
READY
MADE STANDARD POINTS |
|
Modeller's
Information - Standard Points
To plan your layout, these are the sizes for
the various points measured from centre of fishplate to centre of fishplate. The
size can be reduced by 25mm if 1 of the 2 standard sleepers is removed after the
blade rail end, and a further 25mm if no standard sleepers are used at the nose
end.
3250mm Standard left or right hand = 673mm
overall.
5000mm Standard left or right hand = 825mm
overall.
14 degree Standard Crossover = 521mm overall. |
RAIL BUILT BUFFER STOP |
|
Gauge 1 Ready
Made Rail Built Buffer Stop with code 180 bullhead stainless steel rail. These
are assembled using the best M1.6mm A2 stainless steel bolts for longevity.
Options of A.B.S. plastic timber beam, mahogany
hardwood buffer beam (shown) or rail built beam.
Available with either 'Fine' or 'Standard' sleepers.
Supplied with 2 x 15mm or 20mm Bayblend Fishplates
and 4 escutcheon track fixing pins.
|
|
PLASTIC
TRACK PARTS |
So
now to the choice of sleeper/chair base. For most people plastic is the choice
- simply because of maintenance & you save about 15% by assembling it yourself.
Please note - that the terms
'Fine' or 'Standard' scale track, refers to the appearance and NOT to the track
gauge which remains the same throughout the range, and is 45mm normal or 45.5mm
for gauge widened.
First the newer FINE track:- |

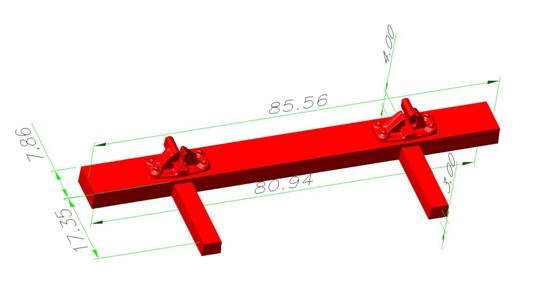

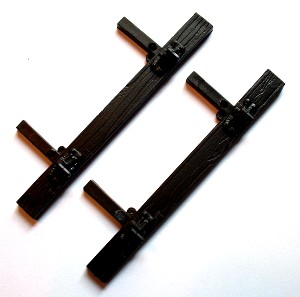

FINE SCALE SLEEPER UNIT |
|
Designed to fit the new code
180 fine scale stainless steel or brass rail, the new fine scale sleeper unit
is moulded in dark chocolate brown polypropylene single (track gauge of 45mm)
and gauge widened version (45.5mm) in A.B.S. dark chocolate brown, both with extra
U.V. light protection for tropical conditions. The rail inclination is included
for smooth running. The sleeper unit also comes with 2 different wood grains.
The wood block detail is included with the chair. Alternative sleeper ends
are also provided; so that the sleeper could be cut down to make an 8' 6"
sleeper in 1 to 32 scale (80.94mm). If you model in 10mm the sleeper length
of 85.56mm is just over for an 8' 6" sleeper, or is correct for a 9' 0"
sleeper in 1 to 32 scale, the sleeper width is 7.9mm, and a spacer bar length
of 17.4mm. The sleeper has a scale thickness of 4mm. The track
comes with 1.1mm discreet fixing holes on the inside of the spacer bar; these
will fit an escutcheon pin (19 gauge), which are also available from me. CAD
designed chair from the Great Eastern Railway, which even has the lettering and
numbers 'G.E.R. 1905 T B S 95 lbs.' With the rail now held correctly in the chair,
there is an increase in flange depth clearance to 2.4mm, that is without taking
into account the wheel 'Cone Radius', so even G Scale will run on it. Packs of
36 single sleeper units for 1 yard, 360 for 10 yards of track.
 You
can now copy full size practice by gauge widening the track. 45.5mm track
gauge. Use this track for radiuses especially under 12 ft. and on any curved
work as this helps to stop loco's slowing down due to flange friction as they
run through the curves. Moulded in dark chocolate brown UV stabilized A.B.S.
plastic to give a long life expectancy outside. Can also be used as straight
track. Can be solvent welded with A.B.S. chairs to make multi gauge track.
Packs of 36 single sleeper units for 1 yard, 360 for 10 yards of track.
|
|
FINE SCALE TURNOUT SLEEPER |
142.85mm
long for point work construction, 9.6mm wide, in long life chocolate brown UV stabilized
A.B.S. plastic. Can be solvent welded. Can also be used for non-standard
track gauges, such as 'Scaleten'. Also useful for track repairs. This has
pre-segmented cut positions in 4.75mm jumps. The spacer bars have a unique
hidden inter locking end that makes an extremely robust & stable turnout.
Discreet fixing points. 27 required for a 3000mm Fine turnout. Packs of
10 or 100. |
|
Secondly the older
STANDARD track:- |
STANDARD
SCALE SLEEPER UNITS |
Double
sleeper unit injection moulded in U.V. light stabilized dark chocolate drown polypropylene
plastic. Fine detailed chairs & sleeper sizes of 90mm x 9.5mm x 5mm.
CAD designed chairs were undertaken by 'Len Newman' of 'Exactoscale'. 1 in
20 rail inclination included for smooth running and better traction as more of
the wheel surface is in contact with the rail. Available in BR 3 bolt for
the older code 200 rail or Midland 4 bolt chair detail to fit the newer code 180
rail. Compatible with other makes of track. Extra U.V. additive included
as standard to give many years of protection.
|

|
For the first time in Gauge 1 modelling you
can now copy full size practice by gauge widening the track. 45.5mm track
gauge. Use this track for radiuses especially under 12 ft. and on any curved
work as this helps to stop loco's slowing down due to flange friction as they
run through the curves. Moulded in dark chocolate brown UV stabilized A.B.S.
plastic, this has a longer life expectancy than polypropylene outside. Can
also be used as straight track. Can be solvent welded with A.B.S. chairs
to make multi gauge track. Available in BR 3 bolt or Midland 4 bolt chair
detail. Compatible with other makes of track. Packs of 18 or 180 double sleeper
units, to make 1 yard or 10 yards.
The new Fine scale code 180 rail also fits both 'Standard' and
'Gauge Widened' sleeper units for both the 3 and 4 bolt chair design, but the
rail sits deeper into the 3 bolt chair, but there is still sufficient clearance
to run both wheel sets. |
|
|
STANDARD SCALE FIRE RETARDANT
SLEEPER UNITS |

These are the same as the 'Gauge Widened' sleeper units,
but have the addition of a fire retardant in the plastic, making them ideal for
steaming bays or exhibition tracks where safety is paramount. The plastic
will still melt but will not catch fire and will self extinguish. Track
gauge 45.5mm. Moulded in 'Charcoal Black' A.B.S. plastic. Packs of 18
or 180 double sleeper units, to make 1 yard or 10 yards. |
|

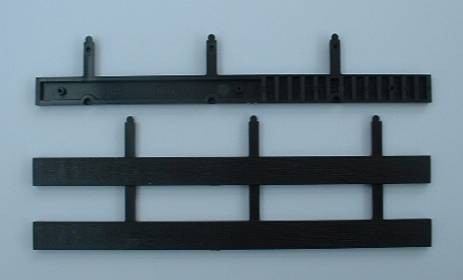

STANDARD SCALE TURNOUT SLEEPER |
155mm long for point work construction,
11mm wide, in long life chocolate brown UV stabilized ABS. plastic. Can
be solvent welded. This has pre-segmented and numbered cut positions in 5mm
jumps from 90mm to 155mm. The spacer bars have a unique hidden inter locking
end that makes an extremely robust & stable turnout. 24 required for
standard 3 meter course scale turnout. Packs of 10 or 100.
Can also be used for non-standard track gauges, such as 'Scaleten'.
|
|
STANDARD
SCALE/FINESCALE CHAIRS |
A set of
Chairs, all CAD designed by 'Len Newman' of 'Exactoscale'. Designed for
the code 200 rail, but can also be used with the new code 180 rail. These
include - Running Chair to standard B.R. "S1" (3 bolt) design, Slide
Chair to standard B.R. "PJ" (4 bolt) design with a separate bolt head
and a separate support block as in the prototype. The V grease groove is
also modelled. A Check Chair to standard B.R. "CC" (4 bolt) design,
this has a flange way width of 2.8mm to give better checking through turnouts.
Also a Bridge Chair to standard B.R. "L1" (4 bolt) design. They
are finely modelled to give a great appearance in dark brown UV stabilized A.B.S.
plastic. Solvent weld to the turnout sleeper or double A.B.S. sleeper units
for multi gauge track, or weld in the separate pin to press into pre-drilled 3
mm diameter holes. These can also be used for modeller's who prefer wooden
sleepers; the locating spigot has a cruciform ribbed design. These pins have a rim diameter of 4.9mm, spigot
overall diameter of 3mm including the 4 x .1mm anti-turn vertical ribs, rim thickness
of .6mm and an overall height of 5mm. 3 bolt chairs in packs of 100
or 1000, including pins. Slide, Check or Bridge Chair in packs of 10 or
100. Tophat pins in packs of 10, 100 or 1000. |
|
TURNOUT
KITS |
Turnout kits
are now available using the new injection moulded long sleeper either 'Fine' or
'Standard' scales. These kits include sleepers, with sufficient of all 4
types of chairs, full instructions.
Kits do not include plan, rail of your choice, tiebar or blade unit, frog unit
or weld glue which should be purchased separately. |
|
SUPER
ELEVATION WEDGE |
A
small injection moulded wedge that makes the inclusion of super elevation on the
curves both quick and easy. This A.B.S. plastic item slides under the sleeper
on curves to give the correct raising of the outside edge on curved track work. 80mm
x 9.5mm, tapering from .4mm to 4mm. Designed to fit the Standard Scale sleeper
unit, they will also fit the Finescale sleeper unit. Can be solvent welded to
the gauge widened A.B.S. sleeper units. Packs of 100 (sufficient for approximately
10 yards of track).
Also available in Fire Retardant A.B.S. Plastic
|
|
FISHPLATES |
Complete
set of injection moulded rail joiners (fishplates) are now available. I
have developed a low cost injection moulded fishplates with a scale length of
15mm long and only fits my code 180 rail, and also a course scale universal version
for 'Standard' or 'Fine' track, which is 20mm long and fits either code 180 or
the older code 200 rail. These have bolt head detail on one side with bolt
and nut detail on the other side. Designed to be sprung onto the rails to
hold the rails in line all the time. These have no central insulation bar,
but this could easily be fitted with a tiny piece of plastic inserted. Supplied
in packs of 10's & 100's. Supplied with a Super Elevation Wedge to hold them
open whilst fitting. These are available in different materials depending on your
application and preference:-
A.S.A. |
'Acrylate Styrene
Acrylonitrile'. A general purpose material which is very UV light stable,
quite stiff with some flexing and should not snap. Moulded in charcoal black.
My first choice for most applications.
Weldable. |
BAYBLEND |
Joiner in dark brown 'BAYBLEND' which is a high quality ABS
and 45% poly carbonate mixture with added UV protection. Stiff
with some flexing and should not snap. Weldable. |
Polypropylene |
A well known material and quite flexible. Would
be useful for those wanting to retrospectively fitting when the track is in situ,
as these can be sprung onto the rail more easily. Moulded in U.V. stabilized dark
chocolate brown. Not weldable. |
A.B.S. |
These are stiff but could break. Moulded
in dark brown U.V. stabilized dark chocolate brown. Weldable. |
|
|
|
DISPLAY TRACK KIT |
Display Track
kit to make 1 Yard. Includes 4 x 18” stainless steel rails, 36 'Fine' sleeper
units, 2 x 15mm Scale fishplates, cornish ballast, 10mm x 19 gauge track pins
& full instructions. |
|
TRACK REPAIR KIT |
Track repair kit with 10 ‘Fine’
or 'Standard' sleepers and 20 x 3 bolt running chairs, with instructions. To repair
fire damaged track in situ (weld glue required to complete) |
|
LOST
WAX PARTS
|
FISHPLATES |

|
Originally intended for code 200 bullhead
rail, they also fit code 180 rail. Standard scale 20mm
long. Both sides have the bolt head detail. These have been very popular.
They're much more robust than the pressed brass type & are especially useful
on curves to stop dog legging. 10 per pack.
Also now available in nickel silver, so these go well with the
new stainless steel rail. |
|
|

Here showing the cast
Fishplates joining the new code 180 rail to the older code 200. The code
200 rail needs to be gently filed back by approximately 1" (25mm) to
blend into the code 180 rail
|
POINT LEVER |
|
Two types of Point Levers in lost wax Brass.
Some filing, fettling and drilling is required. Paint, grease and fixing screws
are not included.
The Yellow disc version (L23) is a copy
of an early hand lever which had a heavy cast iron weight to give the throw. This
is a more robust and preferred version for normal use and has either a 6mm or
8mm throw and is therefore also suitable for 'Narrow Gauge' or 'Gauge 3'. The
lever is so arranged to indicate which way the turnout is set for the train.
There is an "Over centre Radiused stopped end rebate" for throw control.
Parts in the kit include; 1 x lever arm, 1 x lever base, 1 x 4BA nyloc nut,
4" x 1/16" brass rodding wire, instructions. Some filing, fettling and
drilling is required. Paint and grease not included.
The Red disc version (L21) is an exact
scale copy of an early hand lever which had a heavy cast iron weight to give the
throw, the face of which was painted red. This lever gives a 6mm throw.
The lever is so arranged to indicate which way the turnout is set for the train.
There is an "Over centre radiused stopped end rebate" for throw control.
Parts in the kit include; 1 x lever arm, 1 x lever base, 1 x 8BA brass nut,
4" x 1/16" brass rodding wire, 2 x M2 x 13mm stainless steel fixing
screws, instructions. Some filing, fettling and drilling is required. Paint and
grease not included. |
|

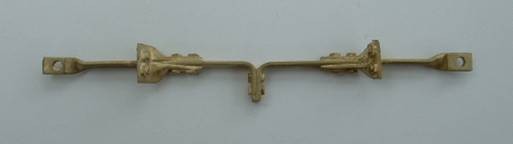

TIE BAR |
Scale
Tie Bar which pre set solder tabs for Standard Scale to give at least 6mm blade
gap. Vertical bar with double ended linking holes for scale 1/16" (1.6mm)
diameter rodding. Single pack. Available in Brass and Nickel Silver.
Also available as an insulated version for track powered railways.
|
|
POINT ROD ROLLER |

|
Scale lost wax brass single point rod roller
which has a barbed spigot for simple/quick fixing. For 1/16" (1.6mm)
diameter rodding. The rod rollers should be spaced at 3” on the curve
and 4” on the straight.
Pack of 1 or 10. |
|
POINT
ROD CRANK KIT |
|
In lost wax brass. Parts include a base
incorporating a barbed spigot for simple & quick fixing. For 1/16" (1.6mm)
diameter rodding. The cranks are 10mm from pivot hole centre to rodding hole
centre. The crank arm is held in place by a simple washer & pin in the pre-formed
1mm hole. Single pack. |
|
|
Point Rod Wire to fit Point Lever, Rod Roller,
Crank and Tiebar in both Gauge 1 and Gauge 3.
|
The whole set of lost
wax parts made up to control turnouts using standard 1/16" (1.6mm) brass
welding wire to link the items

|
BLADE UNIT FOR FINE SLEEPERS |
This is a
single lost wax cast Blade Unit for easy point work construction. The unit
is essentially the same as the Standard Scale version, except that the sleeper
spacing is different, so the unit has been re-designed for use with a 3000mm or
3250mm radius turnouts and Finescale Sleepers. Available in Brass or Nickel Silver
(shown) to go with the stainless steel rail.
|
|
|
BLADE UNIT FOR STANDARD
SLEEPERS |
This
is a single lost wax cast Blade Unit for easy point work construction. The
unit is designed for use with a 3000 or 3250mm radius turnouts. Available in Brass
or Nickel Silver.
|
|

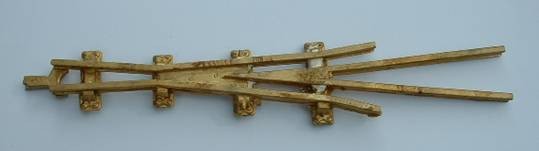

FROG UNIT FINE SCALE SLEEPERS |
For those constructing point work I now
have frog units designed for a 3250mm turnout, but they could be used for 3000mm
or 3500mm radiuses, it is in code 180 rail, but again would fit the older code
200. This unit is not handed and will be suitable for either left hand and
right hand. Supplied with 2 x 20mm A.S.A. plastic fishplates and instructions.
Available in Brass or Nickel Silver.

|
|
FROG UNIT STANDARD SCALE
SLEEPERS |
For
those constructing point work using the older Standard turnout sleepers, I have
a frog unit designed for a 3250mm turnout, but they could be used for 3000mm or
3500mm radiuses, it is in code 180 rail, but would fit the older code 200.
Available as left hand and right hand versions. Available in Nickel Silver only.
|
|
BUFFER STOCK |
S&DJR
or Midland 4 or 6 wheel coach buffer stock (excludes nut). |
|
COACH AXLE GUARD |
 S&DJR
or Midland 4 or 6 wheel coach axle guard, sprung axle box & keep, includes
brake detail. No soldering required. Spring not included. |
|
LUBRICATOR |
Fine
detailed lubricator for locomotives, includes fine wire to represent tubing.
Fixed to running board via drilled hole and 6 B. A. nut. |
|
WHITE
METAL PARTS |
 These
were my first items I introduced to Gauge 1, how things have moved on!! |

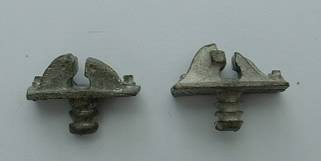

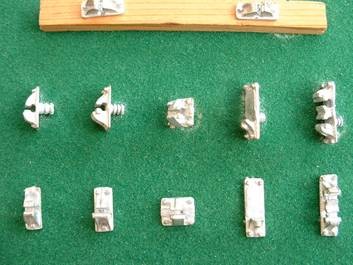

WHITE METAL PLUG IN RUNNING
CHAIRS |
Designed
to fit bullhead rail, these are a low cost way of making the traditional form
of wooden sleeper track. Insert into pre-drilled sleepers, the barbed spigot
locks in place, no time consuming gluing & pinning. Ideal for steaming
bays. 72 running chairs required per yard, if keeping to scale. Can be squeezed
onto some types of flat bottom rail. Choice of Running chairs to standard
B.R. "S1" (3 bolt) design, with barbed spigot or Running chair to an
early 'Wild & Parson' (2 bolt) design, with barbed spigot. Pack of 100.
ALL SOLD OUT SORRY |

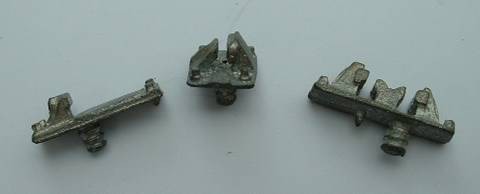

Turnout
parts for D.I.Y. constructors, Slide chair to standard B.R. "PJ" (4
bolt) design, with barbed spigot. Check chair to standard B.R. "CC"
(4 bolt) design, with barbed spigot. Bridge chair to standard B.R. "L1"
(4 bolt) design, with barbed spigot. Pack of 100.
Limited Stock of some items. |
|
QUAD POINT ROD ROLLER |
Quad point rod roller with barbed
spigot.
Pack of 4.
(limited number available) |
|
WOOD
SLEEPER PARTS |
WOOD PARTS |
I have a limited amount of planed
and ready drilled sleeper timber for D.I.Y. construction. Please check availability.
36 sleepers required per yard, if keeping to scale. Planed mahogany
90mm x 8.5mm x 5mm & planed mahogany 90mm x 10mm x 5mm. These are also
supplied pre-drilled 2 holes at 2.8mm ø x 48mm apart. For use with
my plug in chairs. Pack of 100. |
Planed softwood 90mm x 8.5mm x 5mm.
Recommended for internal layouts. These are also supplied planed & drilled
2 x 2.8mm ø x 48mm apart. For use with my plug in chairs. Plastic
plug in chairs can also be used. Pack of 100. |
Planed mahogany crossing timber
10mm x 5mm x 915mm (36"). 3 lengths are required per 3 meter. Turnout
or crossover. |
|
TRACK
PLANS |
FINE SCALE CAD PLANS |
CAD drawn turnout plans. At
present the same radius's as Standard Plans are available showing the Standard
sleepers. |
|
STANDARD SCALE CAD PLANS |
CAD drawn Point plans. Radius's
3000mm, 3250mm, 4000mm, 5000mm & 6000mm radius L.H.,R.H. & "Y"
for Standard sleepers. |
|
TRACK
CONSTRUCTION |
Don't forget the
many items to help you build a superior track... |
TRACK
GAUGE |
Track
gauge in laser cut 3mm aluminium, for either finescale or standard scale. With
45mm one side and 45.5mm gauge widened on the other, rail setting gauge one end
and frog depth gauge the other. |
|
TRACK RULER |
G1 Straight Track Ruler 915mm x 45mm x 3mm Aluminium
for perfect straight track without those annoying kinks. |
|
|
RADIUS
CURVES |
Aluminium Radius
Curves 600mm long x 45mm wide x 3mm thick.
2000mm (6' 7")
2250mm (7' 5")
2500mm (8' 2")
2750mm (9' 0")
3000mm (9' 10")
3250mm (10' 8")
3500mm (11' 6")
3750mm (12' 4")
4000mm (13' 1")
4250mm (13' 11")
4500mm (14' 9")
4750mm (15' 7")
5000mm (16' 5")
5250mm (17' 3")
5500mm (18' 1")
5750mm (18' 10")
6000mm (19' 8") |
|
TRACK FIXING PINS |
Modeller's note -
a pack of 100 is sufficient for approximately 10 yards of track. |
Track
fixing escutcheon pins. With a domed head. They are made in steel which gives
the strength required for fixing and they are also plated in brass and lacquered
to give long life protection outdoors.
The discrete fixing on the 'Fine' or 'Standard' sleeper unit
is 1.5mm high, so this should be deducted from the pin length to give the fixing
depth. The shorter 10mm are ideal for the 'Fine' track, but the longer 13mm can
be used but are tighter in the hole, you may need to use a 1.2mm drill to open
out on the ABS version.
SPECIFICATION;
19 gauge x 10mm long in brass plated steel. Pack of 100 or 1000
18 gauge x 13mm long in brass plated steel. Pack of 100 or 1000 |
|
BALLAST |
1 kilo does about
2 yards of single track. 2 Choices are now available:-
Cornish silver black/gray granite ballast which is dried and
ready to lay. Size:- 1mm to 4mm. 1 kilo or 12.5 kilo bulk bag.
Gray granite ballast which is dried and ready to lay. Size:-
2mm. 1 kilo or 12.5 kilo bulk bag. |
|
|
WOOD PRESERVATIVE |
A water based fungicide & insecticide.
Supplied as a (2 litre) concentrate to make 25 litres (5½ gallons). |
|
BALLAST ADHESIVE |
S. B.R. adhesive,
similar to P.V.A. but will remain waterproof and flexible outside for many years,
ideal for gluing track & ballast down. Can be mixed with cement to make
a fondue for gap filling. Packed in 1 litre & 5 litres. |
|
|
A.B.S. WELD |
This
is a special weld glue used to join A.B.S. plastic parts together.
Available in 2 forms, a thin version which will flash straight
away and is ideal to flash under 2 plastic surfaces such as the super elevation
wedges, and slightly thickened version which tends to hold itself as droplets
and when the another plastic is brought into contact, will flash across, so this
version is ideal for turnout making.
Contains:- Methyl Ethyl Ketone. 50 ml. contents in both
and will make at least 20 turnouts.
Flammable/Irritant.
A safety pot stand is also available to help prevent inadvertent
spillage. |
|
RAIL RUSTER & DESCALER |
I have a rail rusting liquid for
the stainless steel. This is a commercial strength acid descalant with a
specially developed inhibitor to protect the steel, it is simply brushed on and
over night will turn stainless steel rails a nice rusty colour. This can
also be used to rapidly descale boilers; it can be used cold and only requires
a short contact time. Packed in 125ml. I am not able to ship abroad. |
|
|
STAINLESS STEEL FLUX &
NEUTRALIZER |
Stainless Steel Flux & Neutralizer (sufficient
for over 25 turnouts) 5ml or 30ml. |
|
|
|
|
